Belong to Category：New Products |
|
|
 |
|
Item No: |
KY-ROUTER4 |
|
Product Name: |

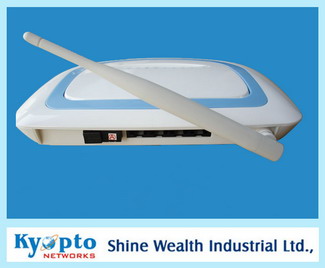

Optical Wireless Router |
|
Weight(Kg): |
1 |
|
Compatibility: |
wireless Router
DC Power Adapter for the wireless Router
Quick Installation Guide
|
|
Base Data : |
IEEE802.11n current draft、IEEE 802.11g、IEEE 802.11b、IEEE 802.3、
IEEE 802.3u、IEEE 802.3x
Protocol: CSMA/CA、CSMA/CD、TCP/IP、ICMP、NAT、PPPoE, DHCP ,PPTP,UDP,
NAT, DNS、DDNS、VPN
Port LAN: 4*100BaseTX (Auto MDI/MDIX)
Port WAN: 1*100Base optical (Auto MDI/MDIX)
Cable: Multi-mode Fiber: 50/125, 62.5/125um(the max distance up to 2km or 5km)
Single-mode Fiber: 8/125,8.7/125, 9/125, 10/125um(the max distance up to 20-60km)
Wireless parameter RF Frequency : 2.4~2.4835GHz
Data Rate : 11n: 300/270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
72/65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M（adaptive）
11b: 11/5.5/2/1M（adaptive）
Wireless Transmit Power: 20dBm(MAX)
Receiver Sensitivity: 135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|
|
Work Circumstance: |
Operating Temperature: 0 ~ 55℃
Storage: -20 ~ 65℃
Humidity: 5 ~ 95% non-condensing
Power External DC Power Adapter (linear);(Output DC9V,1A;Input 110V/220V)
|
|
|
|
|
Packing Explain:
Channels : 1-11 (North America);1-13 (General Europe);1-14 (Japan)
WLAN Modulation Scheme : BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Antenna Type : 1*2.4GHz Dipole Antenna; （1TX*1RX）
Wireless Operation Mode : Standard Access Point; Wireless WAN mode (Client Mode Wireless),WDS ，WPS
Wireless Security : WEP 64/128bit;MAC based Association; SSID broadcast disable;Wi-Fi Protection Access (TBD),WPA,WPA2
LED: 1*Power, 1*CPU Status, 1*Wireless, 1*WAN（optical）, 4*LAN
Media: 100BASE-TX: UTP/STP Cat. 5
Management type : Local/Remote Web-based configuration
Memories : Flash-2MB;SDRAM-16MB
Spec Explain:
KY-ROUTER4-SM-25 25KM DF SM 25KM
KY-ROUTER4-SM-40 40KM DF SM 40KM
KY-ROUTER4-SM-60 60KM DF SM 60KM
KY-ROUTER4-MM-02 2KM DF MM 2KM
KY-ROUTER4-SF-A-20 SF Tx1310nm/Rx1550nm SM 20KM
KY-ROUTER4-SF-B-20 SF Tx1550nm/Rx1310nm SM 20KM
|
|
|
|
