Belong to Category：Ethernet Media Converter Series |
|
|
 |
|
Item No: |
EMC034 |
|
Product Name: |

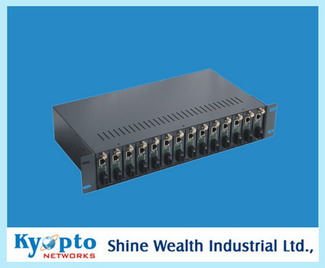

KY-MCC-2U-14 |
|
Weight(Kg): |
0 |
|
Compatibility: |
19 inch, 2U height, 14 Slots, 220VAC, No Management, with redundant power supply module. |
|
Base Data : |
5. Technical Specifications
Slots quantity: 14 slots or 16 slots
Power: Input: AC 100 ～ 260V, 50～60HZ
Output: DC +5V 12A
Ripple: ≤20mv
Noise: ≤50mv
Power protection: Protection from over voltage, over current and short circuit
Working temperature：0～50℃
Storage temperature：-20℃～70℃
Relative Humidity：5%～95%
Dimensions: 485 (wide) × 245 (length) × 90 (high) mm.
2U 19″
|
|
Work Circumstance: |
◆Ambient Temperature:：0 ～ +50℃；
◆Storage Temperature:：-20 ～ +70℃；
◆Humidity：5% ～ 90%
|
|
|
|
|
Packing Explain:
Dimensions: 485 (wide) × 245 (length) × 90 (high) mm.
2U 19″
Spec Explain:
1. Overview
The Media Converter Rack is designed to accommodate separate and independent media converters with a rack-mountable chassis. The rack is developed for telecom fiber networking project as a matched product. It is applicable to the working environment of high reliability, high capacity, high integration and perfect performance. The rack is stable performance, large capacity of power supply, and ease for management and maintenance. Before using this rack, please read this manual carefully, please install and operate it as following this manual to avoid the damage.
2. Packing list
Please check the components when you open the box, the following things are should be including:
----A Media Converter Rack
----220V AC Adapter or 48V DC Adapter
----14 or 16 fixed sticks, 6 fronts of baffle-boards
----A User’s Manual
|
|
|
|
