<<BACK
Belong to Category：Ethernet Media Converter Series
Item No: EMC023
Product Name: KY-SF05MM
Weight(Kg): 1
Compatibility: KY-SF05MM
Base Data : Technical Specifications
◆Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
◆Connector: UTP: RJ-45,10/100Mbps; Fiber: SC/FC,100Mbps (Full Duplex)
◆Cable
UTP cable: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber (singlemode): 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
◆Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
◆Power supply： AC100 ～ 240V，50～60Hz; DC5V 2A;
◆Dimensions：27 × 85 × 125mm
Work Circumstance: ◆Environment temperature：0 ～ +50℃
◆Storage temperature:：：-20 ～ +70℃
◆Humidity:：5% ～ 90%




Packing Explain:



Spec Explain:

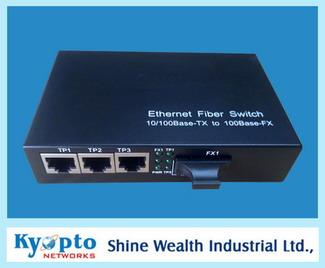

10/100M Ethernet Optical Fiber Switch with one or two Fiber Ports

SF05 Series provides one or two 100M optical fiber ports and three 10/100M UTP ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

Main features
◆It can convert Optical－Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interface (FX) or between 100M and 100M optical fiber interface (FX).
◆UTP port supports MDI / MDI-X auto crossover
◆Broadcast storm protection
◆Supporting the max 1916 bytes frame
◆Internal IC of prevented thunderbolt could greatly reduce damage of the converter caused by thunderbolt induction.
