Item No: EMC014

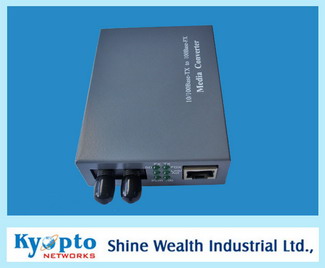

Product Name: KY-DS01-ST
Weight(Kg): 0
Compatibility: KY-DS01-ST
KY-DM01-ST
Base Data : 6. Technical Specifications
The Converter conforms to the following standards:
 Standerds: IEEE 802.3z/AB 10/1001000Base-T
1000Base-SX/LX/ZX
 UTP Cable: Cat.5e or Cat.6 cable up to 100m.
 Fiber Cable:
1000SX: 50/125，62.5/125µm molti-mode
1000LX/ZX: 9/125µm single-mode.
 Data Transfer Rate:
2000Mbps for full-duplex at 1000Mbps speed.
 LED Indicators:
TP Act, Fdx, 100, 1000
Power, FX Act
 TP Flow Control: NWay auto-negotiation
Fiber Flow Control: NWay at full-duplex mode
 Power Requirement: 220V(175-260V)AC，50Hz
Work Circumstance: Ambient Temperature: 0 ～ 50℃
 Humidity: 5% ～ 90%




Packing Explain:



Spec Explain:

1．Overview
IEEE802.3z/AB 1000Mbps Gigabit Ethernet Media Converter supports two types media for network connection such as 10/100/1000Base-T and 1000Base-SX/LX/ZX. The media converter is designed with a switch controller and buffer memory that connects two types segments to operate smoothly. With internal power unit or external power unit, it provides good stability and reliability.
The Gigabit Ethernet Media Converter supports MDI/MDIX auto crossover.
The Single-mode Single Fiber Converter is specially designed with an optic Wavelength Division Multiplexing(WDM) model that can transport bi-directional full duplex signal over a single fiber simultaneously. It must be used in couples.
The 1(A) models wavelength are option TX(Transmit) 1310nm, RX(Receive) 1550nm.
The 2(B) models wavelength are option TX(Transmit) 1550nm, RX(Receive) 1310nm.

2. Checklist
Before you installing the Converter, verify that the package contains the following：
1． The TP-Fiber Media converter.
2． AC Power Cord or Cable.
3． This User’s Manual.
Piease notify your sales representative immediately if any of the aforementioned items is missing or damaged.
5. Installing the Converter
1. Attach fiber cable from the Converter to the fiber network.. The fiber connections must be matched: transmit socket to receive socket.
2. Attach a UTP cable from the TP network device to the RJ45 port on the Converter.
3. Connect the power cord to the Converter and check that the Power LED lights up. The TP Act and FX Act LEDs will light when all the cable connections satisfactory.
