Belong to Category：Ethernet Media Converter Series |
|
|
 |
|
Item No: |
EMC013 |
|

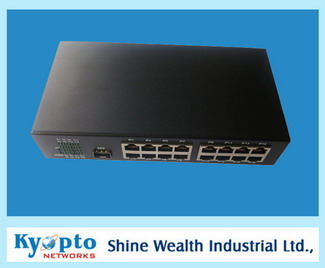

Product Name: |
KY-SF17-SFP |
|
Weight(Kg): |
1 |
|
Compatibility: |
KYSF17-SFP |
|
Base Data : |
4. Main Features
● Complied with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX and 100Base-FX fast Ethernet.
● 16 10/100M auto-negotiable UTP ports, auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.
● UTP port supports MDI/MDI-X auto crossover
● MAC address table: 4K.
● MAC address support auto-learning and migration
● Support flow control.
● Support port base VLAN
● LED indicators can inspect the working condition of every port conveniently.
5. Technical Specification
(3) General Specification
Operating standards: IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX and 100Base-FX Fast
Ethernet
ANSI/IEEE STD 802.3 10/100M auto-negotiated
Protocol: CSMA/CD
Data Transmitting Rate: Ethernet: 10Mbps (Half Duplex)
20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex)
200Mbps (Full Duplex)
Cable: UTP or STP, CAT. 5 or CAT. 6, the max distance up to 100m
Fiber: (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 20-120km)
Connector: 16 RJ-45, 10/100Mbps auto-negotiable ports; one SFP ports
Duplex choose: every RJ45 port N-WAY auto-choose Full/Half Duplex
LED indicators: POWER, Px Link/Act,
Flow control:
Full Duplex: IEEE802.3x flow control;
Half Duplex: bake pressure flow control
MAC address table: 4K
(4) Physical Characteristics
power supply： AC100 ～ 260V, 50Hz; DC5V 2A
Power: 10W
|
|
Work Circumstance: |
Environment temperature：0 ～ +50℃
Storage temperature:：：-25 ～ +70℃
Humidity:：5% ～ 90%
|
|
|
|
|
Packing Explain:
Spec Explain:
17 Port Fast Ethernet Switch User’s Manual
1. FCC Warning
The SF17 Fast Ethernet Switch have been tested and found to comply with FCC Rules (The provisions of section 15 of the A-class digital equipment restrictions)
● The equipment will not cause harmful electromagnetic interference
● The equipment can withstand electromagnetic interference from normal environment.
However, the wrong installation may interfere with telecommunication, so please install this equipment according to the manual.
2. Overview
SF17 Fast Ethernet Switch complies with IEEE802.3, 10Base-T and IEEE802.3u, 100Base-FX. There are 16 10/100Mbps auto-negotiable UTP ports and 1 SFP port or 1 SC Fiber port in the switch.
Every UTP ports of SF17 Fast Ethernet Switch can auto-negotiate the speed (10/100Mbps), the data transmission duplex way (Full duplex/half duplex), and the auto crossover of RJ45 port (MDI / MDI-X).
SF17 is an excellent all-purposed Optical Fiber Switch with work group, it can be used as switch equipment in small network.
3. User’s Guide
Every UTP ports of SF17 can be joined by Twist Pairs with Hubs, Switches, Routers, Servers or NIC etc. Ethernet equipments. It is convenient to users because it is unnecessary to distinguish MDI or MDI-X. For this Switch can work in 100Mbps steadily, please select Cat 5 UTP cable, and make the connector with guide.
The SFP port of SF17 can be joined by Corresponding Fiber with another Fiber Media Converter, Hubs, Switches, Routers, Servers or Fiber NIC etc. Ethernet fiber equipments. The SFP port is set to 100Mbps Full Duplex.
Use corresponding cable to connect this switch port and the docking equipment port, Insert the AC/DC adapter to the power socket of the switch and AC power supply, The LED indicators front of the switch will blink in turn, it shows the switch is self-testing, when the self-testine is completed, the power LED indicator and other LED indicators will indicate the working condition of every ports as following description.
There are a power LED indicator and a SFP LED indicator,and 16 LED indicators with corresponding each UTP ports,the indicating conditions are as following:
● Link/Act: Light when the ports connection with remote device is good; Unlight shows the UTP or the fiber doesn’t connect smoothly or the docking equipment doesn’t work; Blink shows the port is transmitting data.
|
|
|
|
