Item No: EMC006

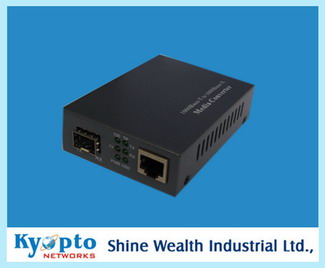

Product Name: KY-10/100/1000-SFP
Weight(Kg): 0
Compatibility:
Base Data : IEEE802.3z/AB 1000Mbps Gigabit Ethernet supports two types media for network connection such as 10/100/1000Base-T and 1000Base-SX/LX. The media converter is designed with a switch controller and buffer memory that connects two types segments to operate smoothly. With internal power unit, it provides good stability and reliability.

Standerds: IEEE 802.3z/AB 10/1001000Base-T
1000Base-SX/LX
 UTP Cable: Cat.5e orCat.6 cable and up to 100m.
 Fiber Cable:
1000SX: 50/125，62.5/125µm molti-mode
1000LX: 9/125µm single-mode.
 Data Transfer Rate:
2000Mbps for full-duplex at 1000Mbps speed.
 LED Indicators:
TP Act, Fdx, 100, 1000 , Power, FX Act
 TP Flow Control: NWay auto-negotiation
Fiber Flow Control: NWay at full-duplex mode
Work Circumstance:  Power Requirement: 220V(175-260V)AC，50Hz
 Ambient Temperature: 0 ～ 50℃
 Humidity: 5% ～ 90%




Packing Explain:



Spec Explain:

LED Description
There are six LED At Front View of Gigabit
SFP Converter
TP 100 Lit when TP speed is 100Mbps
TP 1000 Lit when TP speed is 1000Mbps
TP Act Lit when TP connection is good.
Blinks when TP data is transmitting.
TP FDX Lit when TP full-duplex mode is active.Off when TP half-duplex mode is active. Blinks when collision signal is present.
FX Act Lit when TP connection is good.
Blinks when TP data is transmitting.
PWR Lit when +5V power is coming up.

4. Fiber Technical Specifications

1000Base-SX 1000Base-LX-10
Connector type LC LC
Fiber type Multi-mode Single-mode
Wavelength 850nm 1310nm
Max Distance 62.5µm: 224m
50µm: 550m 10Km
Min TX PWR -11.0dBm -12.0dBm
Max TX PWR -6.0dBm -5.0dBm
Sensitivity < -18dBm < -21dBm
Link Budget 7.0dBm 9.0dBm


1000Base-LX-30 1000Base-HX
Connector type LC LC
Fiber type Single-mode Single-mode
Wavelength 1310nm 1550nm
Max Distance 30Km 70Km
Min TX PWR -8.0dBm -5.0dBm
Max TX PWR 0dBm 0dBm
Sensitivity < -25dBm < -25dBm
Link Budget 17.0dBm 20.0dBm
5. Installing the Converter
1.Attach a SFP to SFP Cage on the converter
2.Attach fiber cable from the Converter to the fiber network.. The fiber connections must be matched: transmit socket to receive socket.
3.Attach a UTP cable from the TP network device to the RJ45 port on the Converter.
4.Connect the power cord to the Converter and check that the Power LED lights up. The TP Act and FX Act LEDs will light when all the cable connections satisfactory.
