<<BACK
Belong to Category：Ethernet Media Converter Series
Item No: EMC005

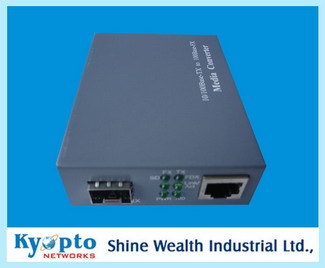

Product Name: KY-10/100-SFP
Weight(Kg): 0
Compatibility: KY-10/100-SFP
Base Data : IEEE802.3z/AB 100Mbps Ethernet supports two types media for network connection such as 10/100Base-T and 100Base-SX/LX. The media converter is designed with a switch controller and buffer memory that connects two types segments to operate smoothly. With internal power unit, it provides good stability and reliability.
Technical Specifications
The Converter conforms to the following standards:
 Standerds: IEEE 802.3z/AB 10/100Base-T
100Base-SX/LX
 UTP Cable: Cat.5e orCat.6 cable and up to 100m.
 Fiber Cable:
100SX: 50/125，62.5/125µm molti-mode
100LX: 9/125µm single-mode.
 Data Transfer Rate:
200Mbps for full-duplex at 100Mbps speed.
Work Circumstance:  Power Requirement: 220V(175-260V)AC，50Hz
 Ambient Temperature: 0 ～ 50℃
 Humidity: 5% ～ 90%




Packing Explain:



Spec Explain:

LED Description
There are six LED At Front View of Gigabit
SFP Converter
TP 100 Lit when TP speed is 100Mbps
TP Act Lit when TP connection is good.
Blinks when TP data is transmitting.
TP FDX Lit when TP full-duplex mode is active.Off when TP half-duplex mode is active. Blinks when collision signal is present.
FX Act Lit when TP connection is good.
Blinks when TP data is transmitting.
PWR Lit when +5V power is coming up.

Installing the Converter
1.Attach a SFP to SFP Cage on the converter
2.Attach fiber cable from the Converter to the fiber network.. The fiber connections must be matched: transmit socket to receive socket.
3.Attach a UTP cable from the TP network device to the RJ45 port on the Converter.
4.Connect the power cord to the Converter and check that the Power LED lights up. The TP Act and FX Act LEDs will light when all the cable connections satisfactory.
