Belong to Category：SFP/GBIC/XFP/X2/XENPAK Transceivers
Item No: KY-BIDI-7008

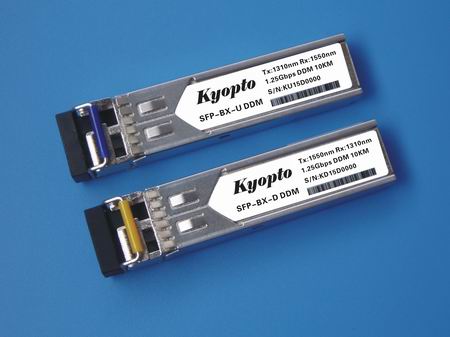

Product Name: SFP-BX-D/U 10KM DDM 1.25G 1310/1550 LC
Weight(Kg): 0
Compatibility: The products are compatible mainstream switch system
Base Data : LC Connector 1.25Gb/s 1550nm DFB-LD and 1310nm FP-LD with DDM function.
Work Circumstance: Operating temperature range: 0℃~70℃




Packing Explain:

The packing explanation:
A）supply the label
1.neutral label
2.label with “KYOPTO” LOGO
3.Supply the label customer used specially according to the requirement of customer(the cost will be charged by you or discuss concretely)
B）the packing box
1。The PVC packing box
2。White box packing
3。Supply the packing box which customer use specially according to the requirements of customer(the cost will be charged by you or discuss concretely)


Spec Explain:

Product Features：
﹡Up to 1.25Gb/s bi-directional data links
﹡SFP Multi-source Package with LC Receptacle
﹡Uncooled 1310nm FP ,1490nm 1550nm DFB laser transmitter
﹡Up to 10km on 9/125μm SMF
﹡Hot-Pluggable Capability
﹡Single +3.3V Power Supply
﹡Isolation > 30dB, Cross Talk < -45dB
﹡Compliant with Specifications for IEEE802.3Z
﹡Operating Case Temperature: 0°C to 70°C
Applications:
﹡Gigabit Ethernet
﹡Fiber Channel
﹡WDM Application
