Belong to Category：SFP/GBIC/XFP/X2/XENPAK Transceivers
Item No: KY-SFP-7002

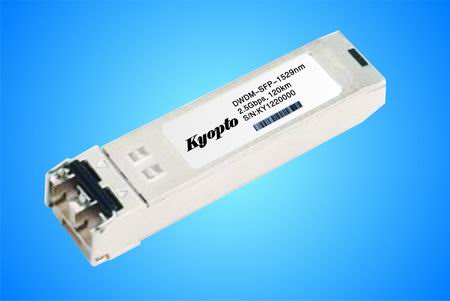

Product Name: DWDM-SFP-XXXX 120KM 1.25G /2.5G
Weight(Kg): 0
Compatibility: The products are compatible mainstream switch system
Base Data : SFP 1.25/2.5Gbps-DWDM (LC/120Km/XXXXnm/Single-Mode) Transceiver
Work Circumstance: Operating temperature range: 0℃~70℃




Packing Explain:

The packing explanation:
A）supply the label
1。neutral label
2。label with “KYOPTO” LOGO
3。Supply the label customer used specially according to the requirement of customer(the cost will be charged by you or dicuss concretely)
B）the packing box
1。The PVC packing box
2。White box packing
3。Supply the packing box which customer use specially according to the requirements of customer(the cost will be charged by you or discuss concretely)


Spec Explain:

Features
• Up to 2.7Gb/s data rate
• All 100 GHz C-Band Wavelengths on the
DWDM ITU Grid
• SFF-8472 MSA Compliant
• Cold Start up Wavelength Compliance
• Low Power Dissipation <1.3W Maximum
• -5ºC to 70ºC Operating Case Temperature
• Diagnostic Performance Monitoring of Transmit Power,
Laser Bias, Receive Power, Module Temperature,
APD Bias Voltage, TEC Current
• Extended link budget with APD receiver technology
• OC48/STM-16 Long Reach 80km, 120km and 200km Versions
• RoHS compliant and lead free
